Features
Unique high sensitivity, even when 10% of the power is output, it can still rapidly detect good maps.
Use the latest operating system to keep up with the latest world's technology.
Use the latest digital technology, maps are clearer than before.
Maps can be stored and read at any time.
Use dynamic caculation benchmark, detected parameters can be automatically calculated and real-time displayed.
Stored large quantity of normal parameters of all ages and sex can be used as clinical reference.
Humanized report edit, maps and parameters can be printed in the same frame.

Technical Specification
Above 2.0 intel pentium CPU
80GB memory
17'' low radiation, environmental color monitor(1024 x 768)
Probe frequency: 2MHz PW 4MHz CW
Scroll memory: up to 240s
Frequency spectrum scan speed: 4s - 12s adjustable
Sampling volume(PW): 0.77 - 13mm
Detection depth (PW): 5mm - 150mm
Max speed detection: 200cm / s
Gain: 1-56dB
Automatic detection and displayed parameters: Vp Vm Vd PI RI SD
Frequency spectrum: 256 FFT

Standard Configuration:

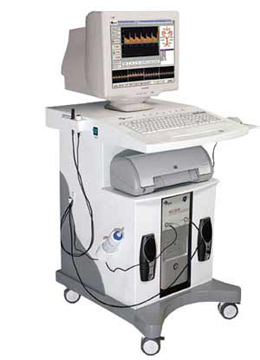

RH-3200 mainframe
Color ink-jet printer
17" color monitor
2MHz probe(PW)
4MHz probe(CW)
Standard keyboard
Small dedicated keyboard
Trackball

Optional Item:
Dedicated software(network version)
DVD recording system
Dedicated trolley
