Features
Multi gate-depth synchronical detection: in the case of
single channel, 2MHz probe can synchronically detect
vascular doppler signal of 8 depths, the detected map
can be displayed in single, double and eight windows.
Multi channel detection: in case of two channels, the
unit can synchronically detect doppler signal of four
depths of the patient, and display 8 segment M wave,
which is convenient to see the contrast.
Full information storage: full information storage
function can fully record clinical detection
information. Also the detection process can be playback,
when you can adjust gain scale and envelope card of the
map, calculate related parameters manually. And it helps
a lot to the embolus distinguishing and patient's return
visit.
Eight segment M wave mode: totally different from
traditional mode, this mode enables you to observe
doppler signal of 8 depths freely and switch to any one
you want using 512 FFT spectrum observation. It
iconically complants the Willis-ring, which makes it
easy to observe the motion of embolus.
High sensitivity: Unique technology enables that even
when 10% of power is output, it can also detect clear
spectrum without couplant, and the adjustable power
makes it no more difficult to diagnose for the old.
Practical case managing system: the system makes it easy
to manage large quantities of cases. It can also be
transmitted from network if you require that (optional).
Technical Specification:
Operating system: Windows XP
Probe frequency: 2MHz PW 4MHz CW
Spectrum scan speed: 4s-12s adjustable
Sampling volume(PW): 0.77-13mm adjustable
Gain: 1-56 dB
Detection depth: 5mm-130mm
Max detection speed: 300cm/s
Automatic detection parameters: Vp Vm Vd PI RI SD
Frequency spectrum: 256 FFT, 512 FFT
Power: 220v¡À10% 50Hz¡À1Hz

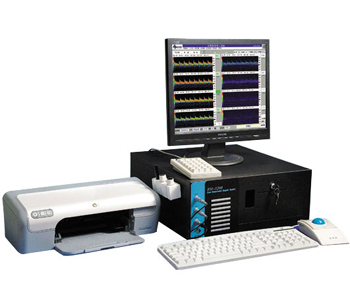

Standard Configuration:
RH-3200 mainframe system, color ink-jet printer
17" low radiation, environmental color monitor(1024x768)
Probe: 2MHz PW 4MHz CW
Standard keyboard
Small dedicated keyboard
Multimedia speaker
Trackball
Optional Item:
17" color LCD
Dedicated network software
DVD recording system
Dedicated trolley
