Features
Utilize high performance digital signal processing(DSP) CCD picture pick-up system
Unique light source design proposal, no shade, low power consumption, even illuminous intensity
Image managing software, capture, display, process, print in report and save images
Image processing function, add note, measure length & area of nidus, pseudo process
Diagnosis results can be output in report & true color image
Case managing software makes it easy and quick to retrieve the case information and spectrum
Specially designed image filtering technology makes the image clearer so that the form and contraction of vascular can be seen


Technical Specification
Image resolution: 480,000 pixels using 1/4" color digital CCD
Image interface: video
Level resolution: ≥480 lines
Focus Zoom: 16 times optical zoom, 8 times digital focusing
Magnification: 1-128
Vision scope: 20mm - 25mm - 320mm
Depth of focus: 15mm-40mm 15mm -480mm
Luminous flux intensity: ≥ 0.2 lux
Function: magnification, narrowness, freezing, filtering
Source of light: ring-shaped ultra-white LED light with life span up to 100,000h

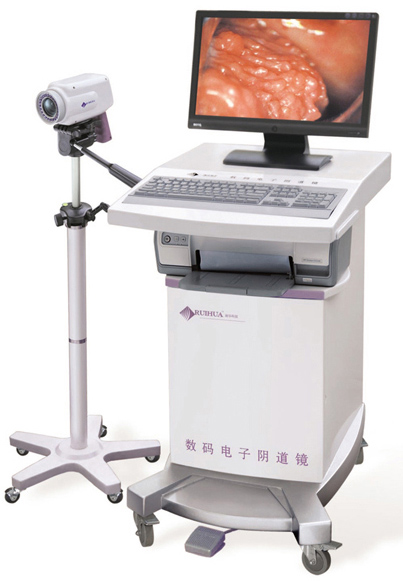

Standard Configuration:
Imported color CCD with original packaging, 480,000 pixels, 1/4"
Bracket with wheels can be adjusted from 50cm to 150cm high
17'' pure screen monitor with resolution 1024×768
Imported color ink -jet printer, dedicated trolley
High-end computer configuration, full Chinese Windows interface

Optional Item:
CCD with 680,000 / 800,000 pixels
　
